ESD Epoxy Flooring for Electronics & Semiconductor
PumaCRETE® static dissipative epoxy and urethane flooring systems are engineered for electronics manufacturing, PCB assembly, semiconductor fabrication, microelectronics testing, and cleanroom environments nationwide. Every system is compliant with ANSI/ESD S20.20, achieves body voltage generation below 15 volts with conductive footwear, and dissipates a 5,000-volt charge to 0 volts in less than 0.1 seconds. The conductive properties are built in — not a wax or surface treatment — and last for the life of the product.
Instead of a one-size-fits-all system, PumaCRETE customizes ESD flooring materials to each customer's specific application. From new construction thin-film coatings to heavy-duty renovation resurfacers, PumaCRETE® ESD surfaces consistently meet customer operational needs while exceeding expectations.
with conductive footwear
to 0 volts
electronics manufacturing
never need re-treating
Interested in other industries/sectors for ESD flooring?
What Is ESD Epoxy Flooring for Electronics Manufacturing?
ESD epoxy flooring for electronics manufacturing is a static dissipative floor coating system specifically engineered to meet the strict electrostatic control requirements of Electrostatic Protected Areas (EPAs). Unlike standard floors that generate and hold static charge, PumaCRETE ESD systems provide a continuous, measured path to ground — safely and controllably dissipating charge as it is generated by personnel and equipment movement.
The conductive properties of PumaCRETE ESD flooring are built into the floor through graphite micro-particles distributed throughout the system. This means electrical performance does not degrade over time, does not require periodic re-treatment or wax application, and is maintained as the surface wears — for the full life of the product.
Key Benefits for Electronics Manufacturing Facilities
▶ ANSI/ESD S20.20 Compliant
Meets the governing ESD control program standard for electronics manufacturing. Body voltage generation below 100V (PumaCRETE achieves <15V). System resistance below 3.5 × 10⁷ Ω.
▶ Lifelong ESD Performance
Graphite micro-particles built into the floor maintain conductive properties for the life of the product — even as the surface wears. No wax, no topical treatment, no maintenance required to preserve electrical properties.
▶ Rapid Charge Dissipation
Dissipates a 5,000-volt charge to 0 volts in less than 0.1 seconds — well beyond the performance minimum required to protect ESDS components during handling and assembly operations.
▶ Seamless, Easy to Clean
Seamless, non-particle-shedding surface ideal for cleanroom environments. Eliminates seam wear, joint deterioration, and particle generation risks associated with vinyl tiles and rubber flooring.
▶ High Moisture Tolerance
Optional moisture-blocking primer handles concrete vapor emissions up to 25 lbs per 1,000 sq ft / 24 hrs — versus the 3 lbs limit of most competitive systems. Eliminates delamination and blistering risk.
▶ Chemical Resistant
Resistant to acids, alkalis, solvents, and cleaning agents used in electronics manufacturing environments. Four-component, aliphatic polyester ESD urethane top coat resists industrial cleaning protocols.
▶ Low Odor Options
Low-odor materials minimize interference with adjacent ongoing operations during installation — essential in occupied electronics manufacturing facilities where production continuity is critical.
▶ New Construction or Renovation
200 Series for new or like-new concrete. 300 Series for renovation with concrete restoration. Solutions for every substrate condition — including heavily deteriorated floors requiring full resurfacing.

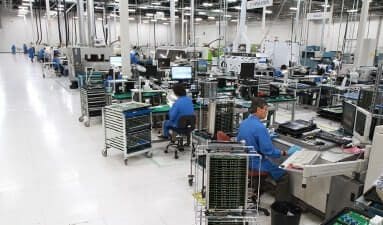

Electronics Manufacturing Application Areas
PumaCRETE ESD flooring is installed throughout electronics manufacturing, semiconductor, and precision assembly facilities — wherever an Electrostatic Protected Area (EPA) must be established and maintained per ANSI/ESD S20.20.

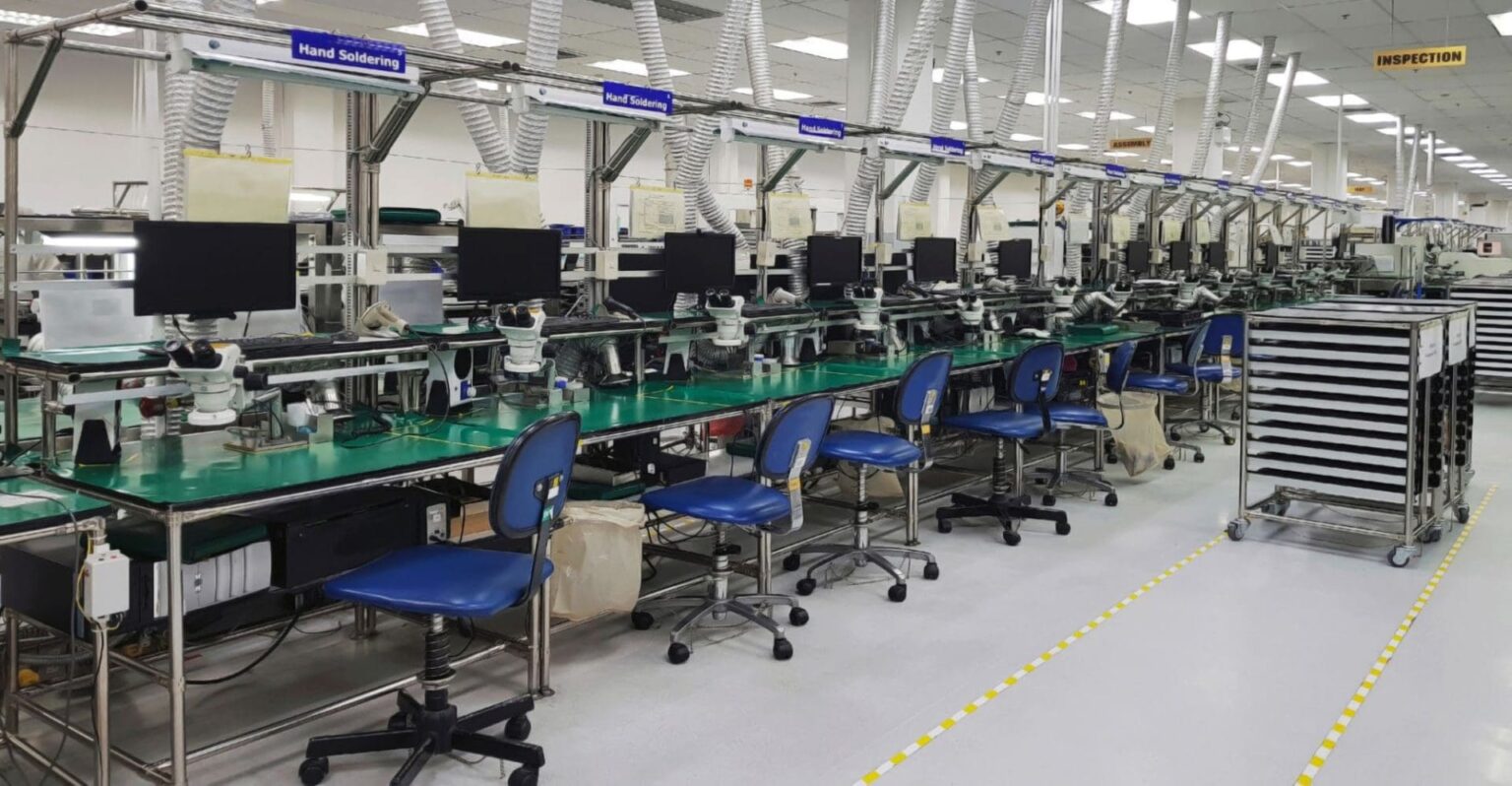

PCB Assembly & Configuration
Surface mount technology (SMT) lines, wave solder stations, reflow ovens, and through-hole assembly areas where bare and populated PCBs are handled and assembled.
ESDS Device Handling
All areas where ESD-sensitive (ESDS) devices are unpacked, inspected, kitted, or transferred. The floor is the primary grounding path for all personnel interacting with unpackaged ESDS items.
Semiconductor Fabrication
Wafer processing, die bonding, wire bonding, and packaging areas. Cleanroom-compatible systems with seamless, non-particle-shedding surfaces compatible with ISO Class 5–8 environments.
Microelectronics Testing & Inspection
Automated optical inspection (AOI), X-ray testing, functional testing, burn-in rooms, and final quality control areas where energized assemblies are tested and inspected.
BGA Rework & Repair
Ball grid array rework stations and general component-level repair areas where close handling of sensitive packaged devices requires continuous ESD control throughout the workspace.
Automated Assembly Lines
Pick-and-place machinery aisles, conveyor-based production lines, and robot manufacturing corridors requiring ESD-controlled floors compatible with AGV and robot traffic.
Component Kitting & Pre-Assembly
Receiving, staging, and kitting areas where components are unpacked from ESD-protective packaging and prepared for production. Often the highest-risk area for uncontrolled ESD events.
Cleanrooms & Controlled Environments
Pharmaceutical, biotech, semiconductor, and precision manufacturing cleanrooms requiring both static control and cleanability. Seamless, non-porous, easily sanitized ESD surfaces.
Role of Conductive Epoxy Flooring
Primary Function
Conductive epoxy flooring is designed to perform three critical functions simultaneously:
Provide a Controlled Path to Ground
A continuous, low-resistance electrical path from personnel and equipment through the floor to the building grounding system — safely dissipating accumulated charge before it reaches a dangerous level.
Prevent Charge Accumulation
By continuously draining charge as it is generated, properly designed conductive flooring prevents voltage from reaching dangerous levels — eliminating the precondition for ESD events.
Stabilize Personnel Potential
Keeping personnel at or near ground potential at all times — minimizing the charge differential between a person and any grounded EED, device, or sensitive equipment they approach or touch.
Performance Classification
| Floor Type | Resistance Range | Behavior | Typical Application |
|---|---|---|---|
| Conductive | < 300,000 Ω | Rapid dissipation | EED, munitions, explosive environments |
| Static Dissipative | 10⁵ – 10⁹ Ω | Controlled discharge | Electronics manufacturing, cleanrooms |
| Insulative | > 10⁹ Ω | Charge accumulation | Not suitable for ESD or EED environments |
Defense-Based Resistance Requirements
| Category | Resistance Range | Application |
|---|---|---|
| Conductive | 75,000 – 300,000 Ω | EED handling areas, munitions storage |
| Antistatic | 300,000 – 2 × 10⁶ Ω | Lower-sensitivity defense applications |
These values are significantly stricter than commercial ESD standards. Specifying a commercial ESD floor in an EED environment is a serious specification error that can result in non-compliance and safety risk.
ESD Epoxy Flooring System Types
Thin Film Conductive Coatings
100 and 200 series
Best for light-duty to medium duty environments and controlled spaces.
FEATURES
- Meet ESD S20.20, DoD4145.26m, NFPA99 requirements.
- Smooth finish (or light texture)
- High abrasion resistance for heavy foot traffic, carts and wheeled loads.
- Easy to clean
- Chemical resistant
Heavy-Duty Conductive Mortar Systems 1/16 to 1/4 inch
300 and 400 series
Used in the most demanding environments.
FEATURES
- Restores damaged concrete
- Impact resistance
- High compressive strength
- Extended lifecycle performance
- Meets ESD S20.20, DoD4145.26m, NFPA99 requirements.
- Chemical resistant
Best for medium to heavy duty environments.
- Smooth finish (or light texture)
- High abrasion resistance for heavy traffic including forklifts, rubber and plastic wheels.
- Easy to clean
PumaCRETE® ESD System Types for Electronics Manufacturing
PumaCRETE offers a complete line of static dissipative (and conductive) flooring systems for electronics manufacturing — from thin-film coatings for new construction through heavy-duty resurfacers for renovation projects on damaged concrete.
200-d PumaESD — 3-Coat Static Dissipative Coating System (12–20 mils)
Best for new concrete or concrete in like-new condition — standard electronics manufacturing ESD floorThe foundation ESD coating system for electronics facilities on new or well-conditioned concrete. Applied with flat or serrated squeegee and paint rollers.
- Static dissipative — ANSI/ESD S20.20 compliant
- 3-coat system: epoxy primer + ESD base coat + aliphatic polyester ESD urethane top coat
- Thickness: 12–20 mils
- Body voltage generation <15V with conductive footwear (ANSI/ESD STM 97.1 / STM 97.2)
- Dissipates 5,000V to 0V in <0.1 seconds
- Smooth or light texture finish | Chemical resistant | Easy to clean
- Resistance to humidity variation — electrical properties stable in dry conditions
- Optional 104-PumaPOXY MB moisture blocker — up to 25 lbs vapor emissions
201-d PumaESD — 4-Coat High-Build Static Dissipative Coating (43 mils)
Increased hiding power for minor surface defects — for concrete in fair-to-good condition- Static dissipative — ANSI/ESD S20.20 compliant
- 4-coat high-build system — 43 mils total thickness
- Greater hiding power for minor concrete surface defects vs. 200-d
- Same ANSI/ESD performance, chemical resistance, and ESD urethane top coat
- Appropriate for electronics facilities with concrete in fair-to-good condition
- Optional moisture blocker for elevated slab moisture
301-d PumaESD — Heavy-Duty Static Dissipative Resurfacer (1/8″ to 3/16″)
For renovation projects on damaged, deteriorated, or heavily worn concrete — restores substrate with full ESD performanceFor electronics facilities where the concrete substrate has deteriorated under years of use, or where high-traffic conditions require maximum durability. Applied with serrated (v-notch) squeegee and optional cam or pin rake.
- Static dissipative — ANSI/ESD S20.20 compliant
- System thickness: 1/8 to 3/16 inch
- Restores damaged, spalled, or deteriorated concrete
- Maximum durability for heavy-duty traffic — forklifts, equipment, heavy carts
- High impact resistance and compressive strength
- Greatly increased resistance to gouging, scraping, and impact vs. coating systems
- Same ANSI/ESD S20.20 compliance and ESD urethane top coat
→ View the Complete PumaCRETE ESD & Conductive Flooring Portfolio | All Technical Data Sheets
ESD Performance Properties — PumaCRETE Electronics Systems
All PumaCRETE ESD systems for electronics manufacturing deliver the following verified performance properties. Electrical performance is confirmed by post-installation compliance testing with calibrated instruments, data logging, and written certification.
| Property | PumaCRETE ESD Performance | Test Method / Standard |
|---|---|---|
| Body Voltage Generation (BVG) | <15 volts with conductive footwear | ANSI/ESD STM 97.1 / STM 97.2 |
| Charge Dissipation | 5,000V to 0V in <0.1 seconds | ANSI/ESD STM 97.1 |
| System Resistance (person + footwear + floor) | <3.5 × 10⁷ Ω (35 megohms) | ANSI/ESD STM 97.2 |
| Resistance to Humidity Variation | Stable — does not vary significantly with RH | ESD flooring FAQ / field performance |
| ESD Property Maintenance | Life of product — no wax or retreatment required | Graphite micro-particle construction |
| Moisture Blocking (optional primer) | Up to 25 lbs vapor emissions | 104-PumaPOXY MB primer |
| Conductive standard compliance | ANSI/ESD S20.20; EOS/ESD STM S7.1 | ANSI/ESD S20.20-2014 |
Humidity stability advantage: When relative humidity is low, static charge builds up faster on most flooring materials. PumaCRETE ESD flooring resistance to ground does not vary significantly with humidity — unlike vinyl and carpet ESD products that can fail in dry conditions common in electronics manufacturing environments.
EARTH GROUND (copper ground rod, bar, outlet.
Copper ground rods are often used in Military, Munitions, and manufacturing environments.
At the ground point on rod... remove oxidation from rod (for connection with a clamp). Run copper foil tape on the floor, per figure 2. Run the tape up the ground rod, and secure tape to ground rod using the copper foil tape.
Certify the Flooring meets:
Certify the Flooring meets:
Grounding, Testing & ANSI/ESD S20.20 Compliance
An ESD floor is only as effective as its grounding system and as verified as its post-installation testing. PumaCRETE supports the complete compliance process — from grounding strip installation through written certification.
Grounding Method — Electronics Manufacturing
Conductive grounding strips installed throughout floor area
Conductive grounding tape (metallic tape) is installed on the floor with conductive adhesive at columns or designated ground points throughout the EPA. Ground connections are placed approximately every 1,500 sq ft — creating a grounding grid that ensures every point on the floor has a low-resistance path to earth.
Connect to preferred earth ground points
Grounding strips are bonded to the facility's preferred earth ground points — building structural steel, copper ground bars, or dedicated grounding electrodes. Near-zero resistance from strip to building ground is verified before the floor is placed in service.
Resistance testing and compliance certification
Immediately after installation, the floor is compliance tested to the applicable standard. ANSI/ESD S20.20 requires that all ESD controls used in a compliant program be verified. Data is logged with a minimum of 5 tests per 5,000 sq ft of floor area. A written certification of compliance is issued after successful completion of the testing procedures.
ANSI/ESD S20.20 Requirements
- Floor will not generate >100V BVG when walked upon
- Person + footwear + floor system resistance to ground <3.5 × 10⁷ Ω
- Flooring tested per EOS/ESD Association ESD STM S7.1
- Compliant ESD Control Program required for electronics manufacturers
Post-Installation Testing Protocol
- Resistance-to-ground (RTG) — minimum 5 tests per 5,000 sq ft
- Walking body voltage (BVG) — person + footwear + floor
- Calibrated ESD test meter required
- All data logged; written certification issued
- Annual re-testing recommended to maintain S20.20 program
Footwear & System Coordination
- ESD footwear (heel straps or ESD shoes) required for compliant system
- Workstations, carts, racks, chairs, and garments all part of complete EPA
- PumaCRETE floor completes the path: person → footwear → floor → ground
- Conductive properties stable — no wax maintenance to compromise grounding
System Design & Specification Factors
PumaCRETE® ESD systems for electronics manufacturing are customized to the specific conditions of each facility. The following factors are evaluated during system specification — ensuring the floor performs to its full design life under real-world electronics manufacturing conditions.
Concrete Substrate Condition
Surface profile, compressive strength, crack and spall extent, existing coatings, and contamination history determine whether the 200-d (new/good concrete), 201-d (fair concrete with hiding power needed), or 301-d (renovation/heavily damaged) system is specified. Existing floor removal costs and timelines are evaluated for occupied facilities.
Concrete Moisture Assessment
Slab moisture vapor emission rate (MVER) is tested before specification. Most ESD coating manufacturers limit their systems to 3 lbs. PumaCRETE's optional 104-PumaPOXY MB moisture blocker handles up to 25 lbs — critical for ground-floor and below-grade electronics facilities. Testing prevents delamination, blistering, cracking, and mold issues post-installation.
Traffic Load & Facility Operations
Foot traffic density, equipment cart loads, forklift axle loads, AGV/robot wheel traffic, and cleaning frequency all factor into system selection. The 300 Series is specified where heavy-duty durability is required; the 200 Series for lighter foot-traffic and cart-only environments.
Cleanroom Classification
ISO Class and particle generation requirements determine finish smoothness, surface texture, and the cleaning protocol compatibility of the system. PumaCRETE ESD coatings are non-particle-shedding and seamless — meeting cleanroom requirements alongside ANSI/ESD S20.20 compliance simultaneously.
Footwear Policy & EPA Classification
The facility's ESD Control Plan — heel straps vs. ESD shoes, seated vs. standing workstations — influences system resistance specification. PumaCRETE works with each customer's ESD coordinator to specify the floor that completes their specific EPA system.
Chemical & Cleaning Exposure
Solvents, flux removers, isopropyl alcohol, and industrial cleaning agents used in electronics manufacturing are evaluated for compatibility. PumaCRETE's four-component, chemical-resistant, aliphatic polyester ESD urethane top coat provides broad resistance to the cleaning protocols of electronics environments.
Renovation projects: For heavily deteriorated concrete in existing electronics facilities, PumaCRETE evaluates removal of existing floor materials (VCT, sheet goods), adhesive removal, joint repair, and moisture issues as part of the complete specification — not just the new coating system.
Why Choose PumaCRETE® for Electronics Manufacturing ESD Flooring
PumaCRETE® is the leader in ESD flooring solutions for microelectronics manufacturing and testing. Instead of a one-size-fits-all approach, PumaCRETE customizes ESD flooring systems to each customer's specific application, substrate condition, cleanroom requirements, and budget.
Lifelong ESD Performance — No Wax
Graphite micro-particles built into the floor maintain conductive properties for the life of the product. No periodic wax or topical treatment — eliminating a major compliance maintenance headache and the risk of wax-related ESD failures.
Exceeds ANSI/ESD S20.20 Minimums
Body voltage generation below 15 volts (ANSI minimum: 100V) and charge dissipation in less than 0.1 seconds. PumaCRETE systems are engineered to exceed compliance requirements — not merely meet them.
Humidity-Stable Performance
Resistance to ground does not vary significantly with relative humidity — unlike vinyl and carpet ESD products that can fail in the controlled, low-humidity environments common in precision electronics manufacturing.
Industry-Leading Moisture Tolerance
Optional moisture blocker primer handles up to 25 lbs vapor emissions — versus the 3-lb limit of most competitive systems. Prevents the delamination and blistering that causes ESD floor failures and production shutdowns.
Seamless — Cleanroom Compatible
Seamless, non-particle-shedding surface eliminates joint degradation, seam wear, and particle generation risks of vinyl tile systems. Compatible with ISO Class 5–8 cleanroom requirements alongside ANSI/ESD S20.20 compliance.
Certified & Documented Compliance
Written certification of compliance with ANSI/ESD S20.20 issued after each installation, backed by logged test data. Supports the customer's ongoing ESD Control Program documentation requirements.
Systems for Every Substrate Condition
200-d for new or good concrete. 201-d for fair concrete requiring more hiding power. 301-d for renovation with full concrete restoration. No project condition is outside PumaCRETE's capability range.
Nationwide Certified Installer Network
Factory-trained installation crews throughout the U.S. and North America. Low-odor materials minimize disruption to adjacent production operations. Fast turnaround available in many instances.
Trusted customers: IBM · Foxconn · Lutron · Colorcon · Spectra Technologies · ARC Automotive · Elanco (Eli Lilly) · General Dynamics · Kongsberg Systems · and many more
INSTALLATION
With a nationwide network of installers, PumaCRETE® has provides a tradition of quality. Our factory-trained installation crews can provide turn-key installation and localized service. In many cases, we can train your personnel or local contractor, with on site training available.
TRAINING
PumaCRETE® can provide on site trainers, along with detailed installation instructions and videos, specialty tools, and surface prep guidelines for new installers or DIY installation. See our installation page for our application resources.
Installation & Training
PumaCRETE flooring is installed by a nationwide network of certified installers. Factory-trained crews provide turn-key installation and localized service throughout the U.S. and North America. In many cases, PumaCRETE can also train your personnel or local contractor.
Turn-Key Installation
- Certified crews nationwide — fast turnaround available
- Complete service: surface prep through ESD testing and certification
- Low-odor options for occupied facilities
- ANSI/ESD S20.20 compliance documentation support
Self-Installation Support
- Factory-certified on-site trainers available
- Written installation instructions for all systems
- Step-by-step instructional videos
- Specialty tool and supply kits
- Live technical phone support throughout the project
Technical Resources & Related Pages
Downloads
- TDS: 200-d PumaESD Static Dissipative Coating
- TDS: 201-d PumaESD High-Build Coating
- TDS: 301-d PumaESD Heavy-Duty Resurfacer
- All Technical Data Sheets
- MasterFormat Specifications
- Installation & Surface Prep Guides
- Safety Data Sheets (SDS)
- Color Charts — ESD Systems
Related Pages
Frequently Asked Questions — ESD Epoxy Flooring for Electronics Manufacturing
What ESD flooring standard applies to electronics manufacturing?
ANSI/ESD S20.20 is the governing standard for ESD control programs in electronics manufacturing. It requires that the floor will not generate more than 100 volts body voltage generation (BVG) when walked upon, and that the combined resistance of the person plus footwear plus floor to ground is less than 3.5 × 10⁷ ohms. PumaCRETE static dissipative systems are ANSI/ESD S20.20 compliant and achieve BVG below 15 volts with conductive footwear.
What is body voltage generation and why does it matter?
Body voltage generation (BVG) is the static charge that builds up on a person as they walk across a floor. ANSI/ESD S20.20 requires that ESD flooring not generate more than 100 volts BVG. PumaCRETE ESD systems achieve body voltage generation below 15 volts with conductive footwear — well below the standard maximum and below the damage threshold of virtually all ESDS components.
How quickly does PumaCRETE ESD flooring dissipate static charge?
PumaCRETE ESD flooring dissipates a 5,000-volt charge to 0 volts in less than 0.1 seconds. This rapid dissipation protects sensitive electronic components during handling and assembly operations.
Do the electrical properties of PumaCRETE ESD flooring wear out?
No. PumaCRETE ESD flooring maintains its conductive properties for the life of the product, even as the surface wears. The conductive properties are built into the floor through graphite micro-particles — not a surface treatment or wax that degrades. No maintenance is required to preserve electrical properties, unlike vinyl ESD tile which requires periodic anti-static wax application.
Can PumaCRETE ESD flooring be installed over high-moisture concrete?
Yes. PumaCRETE ESD flooring includes an optional 104-PumaPOXY MB moisture-blocking primer that handles concrete vapor emissions up to 25 pounds per 1,000 square feet per 24-hour period — far exceeding most manufacturers' limit of 3 pounds. This prevents delamination, blistering, and cracking caused by concrete moisture.
What electronics manufacturing areas require ESD flooring?
ESD flooring is required in all Electrostatic Protected Areas (EPAs), including PCB assembly, ESDS device handling, surface mount technology lines, wave solder and reflow areas, BGA rework stations, microelectronics testing labs, semiconductor fabrication cleanrooms, automated assembly lines, and component kitting zones.
Get an ESD Flooring Consultation for Your Electronics Facility
Contact PumaCRETE for expert guidance on selecting the right ESD epoxy flooring system for your electronics manufacturing or semiconductor facility — substrate evaluation, ANSI/ESD S20.20 compliance, moisture assessment, cleanroom compatibility, and installation options.
PumaCRETE Corp.68 Harrison Avenue, Ste 605 #77920, Boston, MA 02111
857-226-8247 | info@PumaCRETE.net | www.PumaCRETE.net
Ready to Find a Certified Installer Near You?
PumaCRETE's nationwide network of factory-certified applicators is ready to help with your industrial flooring project. Tell us about your facility, floor type, and location — we'll connect you with the right solution.
"With a tradition of quality and durability, we have over 30 years of experience serving the needs of our customers -- we have the experience you can rely on!"
